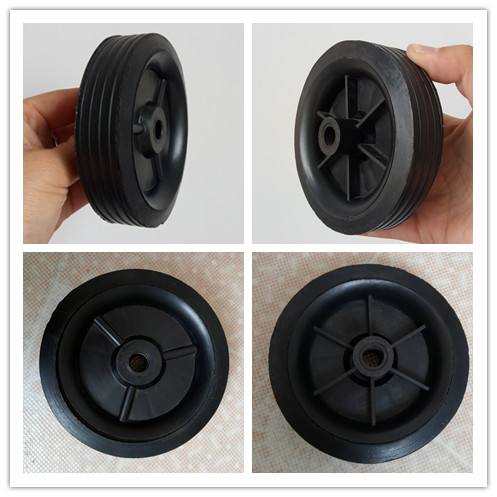

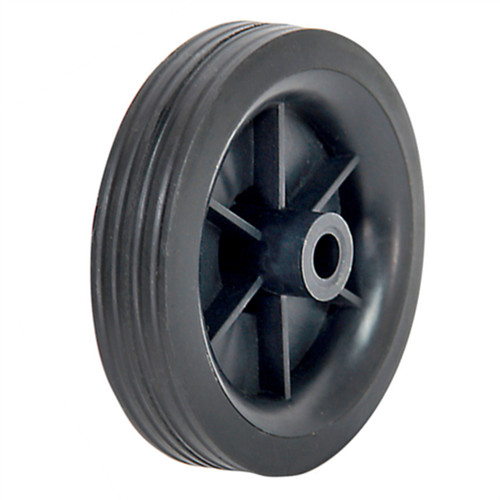

Solid Rubber Wheel 4*1
4inches rubber wheel
Streight Line
Plastic rim,offset hub
rim color:grey,white,black,or customer ordered
Parameter details
Diameter:96mm
Width:23mm
Packing:in bulk or Nylon bag
Axle Hole and Hub length can be adjusted depending on customer request.
Model No. | Wheel diameter | Wheel width | Hub width | Bore Diameter | Bearing type | Load per wheel |
4"×1" | 96mm | 23mm | 21mm | 10mm | Plain | 30kgs |
5"×1.5" | 125mm | 32mm | 34mm | 12mm | Plain | 40kgs |
6"×1.5" | 150mm | 35mm | 32mm | 12/16 /20mm | Ball Bearing | 60kgs |
6"×2" | 150mm | 46mm | 64mm | 12/16 /20mm | Ball Bearing | 70kgs |
7"×1.2" | 178mm | 30mm | 41mm | 8/10/12mm | Ball Bearing | 60kgs |
7"×1.5" | 180mm | 32mm | 36mm | 12/16 /20mm | Plain | 70kgs |
7"×1.75" | 180mm | 35mm | 33mm | 12/16 /20mm | Ball Bearing | 80kgs |
8"×1.75" | 200mm | 40mm | 32mm | 12/16 /20mm | Plain/Ball Bearing | 100kgs |
8"×2" | 200mm | 52mm | 42mm | 12/16 /20mm | Plain/Ball Bearing | 100kgs |
8"×2.50-4 | 200mm | 51mm | 37mm | 12/16 /20mm | Ball Bearing | 120kgs |
10"×1.75" | 250mm | 57mm | 50mm | 12/16 /20mm | Ball Bearing | 120kgs |
10"×2.5" | 250m m | 51mm | 44mm | 12/16 /20mm | Ball Bearing | 150kgs |
10"×3.50-4 | 252mm | 74mm | 53mm | 12/16 /20mm | Ball Bearing | 150kgs |
12"×2.5" | 300mm | 58mm | 39mm | 18mm | Plain | 180kgs |
14"×3" | 350mm | 75mm | 90mm | 12/16 /20mm | Ball Bearing | 250kgs |
16"×4" | 400mm | 84mm | 90mm | 12/16 /20mm | Ball Bearing | 300kgs |
20"×5.5" | 520mm | 139mm | / | / | / | 350kgs |
